Log Splitter Plans, simple easy to use plans. Step-by-step written instructions with digital photos of the steps and processes. These plans are not just drawing and blueprints of someones idea on how to make a log splitter.

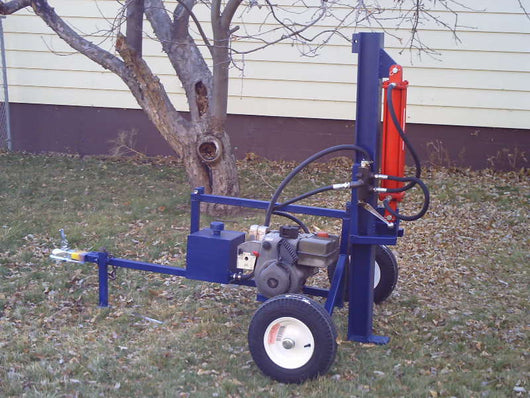

Plans exactly followed will make a splitter with a 10 HP engine, an 11 gpm pump, a 3 inch by 18 inch cylinder get an approx. 10 ton splitter with a 10 sec. cycle time. To increase the splitting capacity all that is required is a larger cylinder/engine.
There are also discussions and steps for how to modify the plans for different cylinder sizes, vertical or horizontal crankshaft engine, larger size tubing for the main frame, 4 way wedge on end with push block on cylinder.
Our plans come with support. Feel free to email with questions firstname.lastname@example.org
Plans availabe in both CD and downloadable formats
PLEASE NOTICE WHICH YOU ARE PURCHASING
This page is for a CD to be mailed out.
Also available to purchase as a download.
