Log Splitter Plans that are simple and easy to follow. Written plans with digital photos of the process and steps as they happen. No hard to read CAD drawings or confusing blueprints. These are not just someone's untested idea and design on how to build a log splitter, these plans show one as it is put together.
Hydraulic Log Splitter Plans

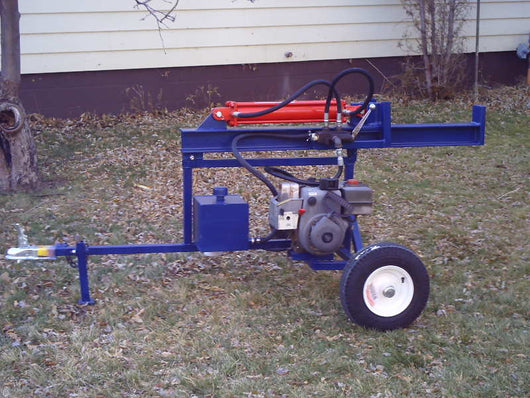

Our log splitter plans make a light, easy to move splitter that can be used both vertically and horizontally.
Tonnage of the hydraulic wood splitter can vary from a 10 ton log splitter up to a 30 ton log splitter (depending on cylinder used). Included in the plan are discussions and steps for how to modify the plans for different cylinder sizes, vertical or horizontal crankshaft engine, larger size tubing for the main frame, and a 4 way wedge on end with push block on cylinder.
In addition all of our plans come with email support if you have any questions or seek assistance in modifications you desire to make.
Our light weight frame makes it easy to move the splitter around.

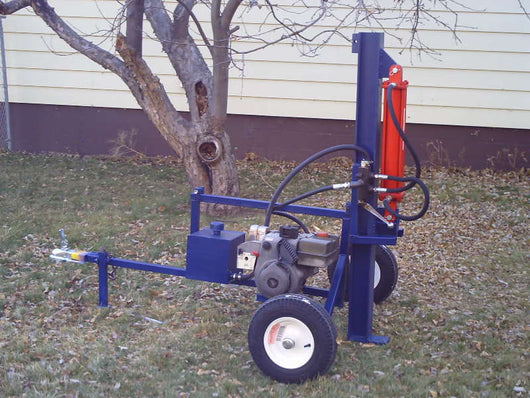

The completed splitter can be both a vertical log splitter or a horizontal log splitter.
: Hand Grinder Welder Drill Drill bits (5/16, 3/8, ½, 1 inch) Chop Saw (or cutting torch, hack saw)
: Approx. 8 hours.
Plans are 19 pages with over 30 photos/diagrams.
Estimated cost of construction $925
